Mercury bežični alarm set 1xPIR
Šifra: 8358
- Proizvod iz grupe: Mercury
- Proizvođač: Mercury akcija
WebCena:
44.000,00 rsd.

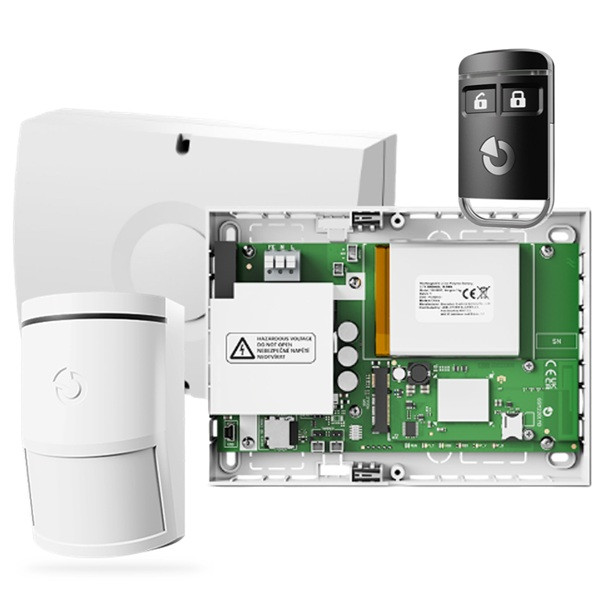

Set obuhvata: centralu JA-152KR sa sirenom i bateriju za nju, PIR detektor JA-150P i baterije za njega, daljinac i bateriju za njega. Ugrađen je GPS MULTIHOME modul i fabrička SIM kartica. Uslugu komunikacije korisnik plaća direktno proizvođaču mesečno 5€, Postoji i godišnji paket usluge sa popustom. Aplikacija za telefon je besplatna. Sistem je proširiv. Cena uključuje i montažu od strane izabranog stručnjaka.
| Installation type | Fixed installation |
|---|---|
| Control panel power supply | ~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with F1.6 A/250 V fuse, security grade II |
| Electrical power / current | Max. 23 VA / 0.1 A |
| Protection class | II. |
| Back-up battery | 3.7V, 5000 mAh, Li-Polymer |
| Low battery backup voltage (fault indication) | ?3.5V |
| Maximum battery recharge time (80% capacity) | 72 h |
| Maximum number of sections | 4 |
| Maximum number of devices | 31 devices + 31 remote controllers |
| Maximum number of users | 32 |
| Max. number of PG outputs | 2 |
| Alarm connections | Wireless connection– unspecified wireless connection, Jablotron wireless protocol |
| Classification of Alarm device | Security Grade 2 / Environment Grade II |
| @ According to standards | EN50131-1, EN 50131-3, EN 50131-6, EN 50131-5-3, EN 50131-10, EN 50136-1, EN 50136-2 |
| @ Environment | Indoor general |
| @ operational temperature range / humidity range | -10 °C to +40 °C / 75% RH without condensation |
| @ power supply | Type A – primary mains power supply with a powered back-up battery. |
| @ event memory capacity | approx. 7 million events, including sources and timestamps. |
| @ system reaction to loss of device communication | Fault or Tamper – Dependent on selected profile |
| @ wireless communication within | 2h (from last communication) |
| @ Wireless communication within | 20min blocks section setting |
| @ system reaction to incorrect code entry | Alarm after 10 wrong code entries, dependent on selected profile, the system will be locked for ten minutes. |
| @ ATS classification | Supported ATS classes: SP2 – SP5, SPT: type Z Operation type: Pass-Through GSM2201MD SP3 – SP5 (JABLO IP, ANSI SIA, DC-09) |
| @ ATS Alarm transmission protocols | JABLO IP |
| @ ATC security against substitution and protection of information | Jablotron protocols: proprietary AES encryption with a minimally 128 bit key ANSI SIA DC-09.2012 protocol with 128 bit AES encryption |
| Dimension | 182 x 132 x 58 mm |
| Weight with battery / without battery | 510 g/430 g |
| Based parameters of the JA 111R module | 868.1 MHz, <25 mW, GFSK <80 kHz |
| Radio emissions | ETSI EN 300 220-1,2 |
| EMC | EN 50130-4, EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-3 |
| Safety conformity | EN IEC 62368-1 |
| Conditions of operation | ERC REC 70-03 |
| Certification body | TREZOR TEST (no. 3025) |
