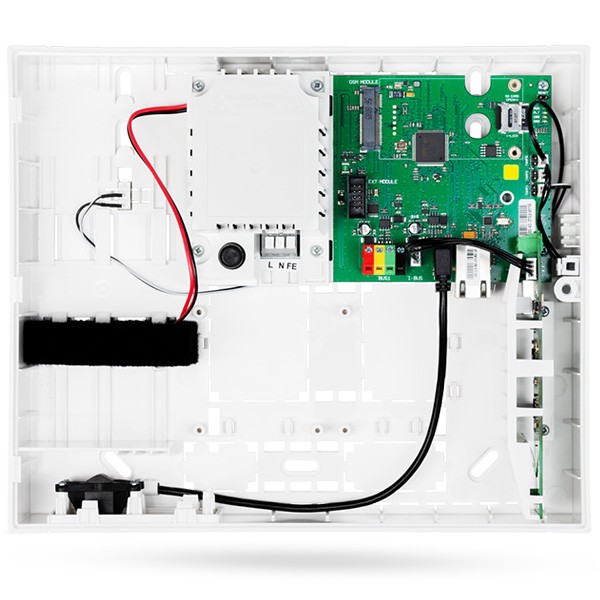

JA-103KR centrala

Šifra: 6560

Proizvod iz grupe: Jablotron 100
Proizvođač: Jablotron

Napomena: Artikal je informativnog karaktera, mogu da kupuju samo sertifikovani instalateri.

JA-103KR centrala za protivprovalni, protivpožarni, protivpoplavni sistem + sistem pametne kuće * Besplatan Cloud, SMS i Push Up obaveštenja * Kontrola preko aplikacije, računara ili tastature * Memorija na serveru i u SD kartici (do7 miliona događaja), Auto-dijagnostika, tačan prikaz stanja baterija i RF signala * LAN konekcija, proširivo na GSM modulom JA-192Y * do 50 bežičnih ili BUS adresa * do 50 korisnika * 8 particija * do 32 PG izlaza *

The required adjustments and sizing of the system are programmed through the F-Link software (from version 2.0.0).

The JA-103K control panel offers:

50 wireless or bus devices

50 users

8 sections

32 programmable PG outputs

20 mutually independent calendar events

8 user SMS and voice reports

5 ARCs can be set

5 selectable protocols for an ARC

The control panel has:

1 terminal board for bus connection

1 connector for a built-in radio module (JA-111R)

1 connector for a GSM/GPRS communicator (JA-192Y)

The control panel also offers functions such as:

Maintenance

Day/night mode

Short departure response

Automatic setting

Advanced calendar features

The following products with the control panel ARE NOT COMPATIBLE:

JA-180A (wireless outdoor siren)

JA-154J (bi-directional remote control)

JA-190X (PSTN communicator module)

The following products with the control panel ARE COMPATIBLE under certain conditions:

The JA-112E (keyboard) is compatible with FW LU61501 and higher

The JA-113E (keyboard) is compatible with FW LU61601 and higher

The JA-118N (PG Bus Output Module) is compatible with LY68003 and higher
The JA-110I (section or PG bus indicator) is compatible only when the PG range is set in the F-Link up to a maximum value of 32

Technical specifications

Control panel power supply	~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with fuse F1.6 A/250 V, Protection class II
Back-up battery	12 V; 2.6 Ah (lead gel)
Maximum battery charging time	48 h
BUS voltage (red - black)	12.0 to 13.8 V
Maximum continuous current consumption from the control panel	1000 mA
Max. continuous current consumption for back-up 12 hours	Without GSM communicator	LAN – OFF: 115 mA LAN – ON: 88 mA
	With GSM communicator	LAN – OFF: 80 mA LAN – ON: 53 mA
Max. continuous current consumption for back-up 24 hours	Without GSM communicator	LAN – OFF: 21 mA
	With GSM communicator	LAN – OFF: 17 mA
Maximum number of devices	50
LAN communicator	Ethernet interface, 10/100BASE
Dimensions	268 x 225 x 83 mm
Weight with/without AKU	1844 g/970 g
Reaction to invalid code entry	Alarm after 10 wrong code entries
Event memory	Approx. 7 million latest events, including date and time
Power supply unit	Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
GSM communicator (2G)	850 / 900 / 1800 / 1900 MHz
Classification	Security grade 2 according to EN 50131-1
Operational environment	Environmental class II (indoor general) according to EN 50131-1
Operational temperature range	-10 °C to +40 °C
Average operational humidity	75 % RH, non-condensing
Complies with	EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA 11xR module)	868.1 MHz
Radio emissions	ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC	EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
Safety conformity	EN 62368-1+A11
Caller identification (CLIP)	ETSI EN 300 089
Operational conditions	ERC REC 70-03
Certification body	Trezor Test s.r.o. (no. 3025)
