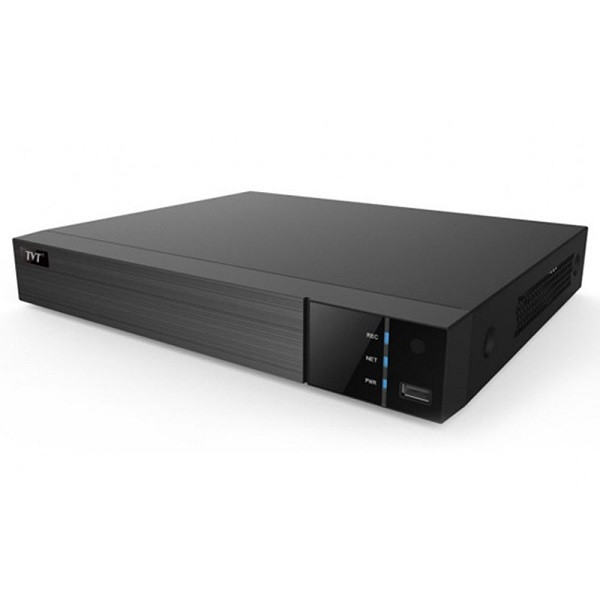

TD3308B1-A1 8-port NVR
- Proizvod iz grupe: NVR snimači
- Proizvođač: Shenzhen TVT Digital Tech.
8 kanalni 4K Pentaplex mrežni rekorder. H.265/H.264. Linux OS. Dual strim zapis za 8
IP kamera do 8MP. Više režima snimanja ( Ručno, Timer, Motion, Sensor). Pametna
pretraga. Istovremena reprodukcija local/remote za 8 kamera. BANDWIDTH
80Mbps/80Mbps. HDD 1x 8TB/SATA. Lokalni monitorski izlaz HDMI x 1 1024x768 /
1280x1024 / 1920x1080 / 3840x2160; VGA x 1: 1024x768 / 1280x1024 / 1920x1080.
PTZ kontrola, RS485x2 ( PTZ ili Tastatura), Network / U disk / USB mobile HDD back
up. USB 2.0 prednji panel, USB 3.0 zadnji panel. Funkcija NAT-a, povezivanje uređaja
pomoću skeniranja QR koda. Network: RJ45 1000Mbps x1. Communication protocol:
TCP/ IP, PPPoE, DHCP ,DNS, DDNS, UPnP, NTP, SMTP. Podrška za IPC alarm in/out; 8x
local alarm input; 8x IPC audio in; Dvosmerni audio RCAx1/Local output RCAx1.
NV9000 GUI. Nadzor preko mobilnog telefona: iOS/Android, maksimalno 10 korisnika
online. Ugrađen WEB server. Prepoznavanje lica, 240 slika u minuti, 16 datoteka /
10000 slika. Pretraga po slici. Upravljanje bazom (Dodavanje, Brisanje,
Modifikovanje, Pretraga). Dodavanje slika kroz APP, WEB i lokalni PC. Rezolucija slike
JPG / 64x64 ̴ 1920x1080 / ˂ 200KB. Podrška za belu/crnu listu. Face trace MAP
600x300 ̴3840x2160. Napajanje DC 12V/2A. Potrošnja ≤ 10W bez HDD.
Temperatura od -10°C
50 °C ̴ 10%
90% vlage.
| Model | TD-3104B1 | TD-3108B1 | |
| System | OS | Embedded Linux | |
| Video | Network Input | 4 CH IPC input | 8CH IPC input |
| Network Input Resolution | 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | ||
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
||
| Compression | Standard H.265 / H.264 | ||
| Audio | Network Input | 4 CH IPC audio input | 8 CH IPC audio input |
| 2-way Audio | No | ||
| Local Output | No (HDMI supports the audio output) | ||
| Compression | G.711(U/A) | ||
| Record | Record Stream | Dual stream recording | |
| Resolution | 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | ||
| Frame Rate | 6MP@20fps(NTSC/PAL); 5MP or lower@30fps/25fps(NTSC/PAL) | ||
| Playback | Simultaneous Playback | Max. 4 CH | Max. 8 CH |
| Search | Time slice / time / event / tag search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Decoding Capability | Live View/ Playback | 1CH 6MP 4CH 720P |
|
| Alarm | Mode | Manual, sensor, motion, exception, smart events | |
| Input | Support IPC alarm input | ||
| Output | Support IPC alarm output | ||
| Triggering | Record, snapshot, buzzer, preset, e-mail, etc. | ||
| Network | Interface | RJ 45 100Mbps × 1 | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x | ||
| Incoming Bandwidth | 32 Mbps | 56 Mbps | |
| Outgoing Bandwidth | 32 Mbps | 56 Mbps | |
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA2.0 × 1, max 8T | |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||
| Port | USB | USB 2.0 × 2 | |
| Remote Controller | Optional | ||
| Others | Power Supply | DC 12V/1.5A | |
| Consumption | < 6W ( without HDD ) | ||
| Dimensions (mm) | 255 × 222 × 42 ( W × D × H ) | ||
| Working Environment | -10 ～ 50 ℃，10% ～ 90% humidity | ||
