NVD-411 NVR 16-port 4-PoE
Šifra: 6885
- Proizvod iz grupe: NVR snimači
- Proizvođač: Partizan
WebCena:
22.656,00 rsd.
10 channels 8.0Mp@25fps; 1xEthernet 10/100Mbit + 4x10/100Mbit (PoE)
Video out: 1xHDMI, 1xVGA. Audio out: 1xTRS (3.5mm)
1xSATA up to 8Tb (not included), 2xUSB2.0, ONVIF, H.265, FTP
Dimensions: 255x220x50 mm; Accessories: power adapter DC48V/1.5A, mouse

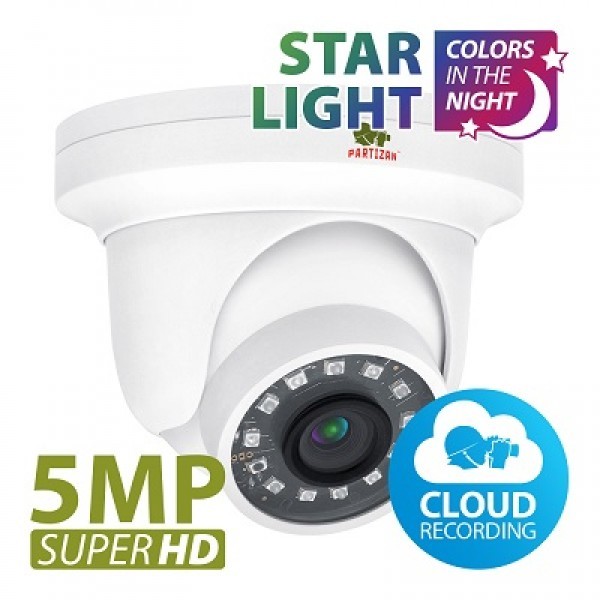

Smart Functions with Cloud-series cameras ONLY: Perimeter Intrusion Detection, Line Crossing Detection, Human detection.
Supported camera quantity(x)recording resolution@frames per second:
1@8Mp, 4x8Mp@25, 8x8Mp@25, 9x8Mp@25, 10x8Mp@25
POE function:
4 independent POE ports. NVR is equipped with built-in 4-channel (cameras) Poe-switch. This allows to connect each IP camera directly to the NVR using only one Ethernet cable with video and power supply transmission.
Video compression:
H.264/H.265 Classic codec is a good choice to keep recordings with a normal resolution and image quality with a reasonable storage space
Audio inputs/outputs:
-/1ch RCA. For audio playback you can use 1 audio output (AUDIO OUT)
Video outputs:
1xVGA, 1xHDMI
Supported HDD (HDD not included):
1хSATA HDD ≤ 8Tb
Network:
RJ-45 (10/100Base-T)
Management and control:
Optical mouse, IR remote
Operating temperature:
0 – +50 °C
Dimensions:
255x220x50 mm, 1200 g
Housing material:
Metal
Additional advantages:
— 10-channel record
— 4-port built-in PoE power supply
— ONVIF 2.4 protocol support
— Smart functions support: Perimeter Intrusion Detection / Line Crossing Detection / Human detection. Available only with Cloud-series cameras
— Support mobile monitoring: iOS & Android
— Fully compatible with PARTIZAN CLOUD STORAGE, a unique complete solution for video archives cloud storage
— Remote access to the device with Partizan MAC
— 3 years warranty
— 4-port built-in PoE power supply
— ONVIF 2.4 protocol support
— Smart functions support: Perimeter Intrusion Detection / Line Crossing Detection / Human detection. Available only with Cloud-series cameras
— Support mobile monitoring: iOS & Android
— Fully compatible with PARTIZAN CLOUD STORAGE, a unique complete solution for video archives cloud storage
— Remote access to the device with Partizan MAC
— 3 years warranty
